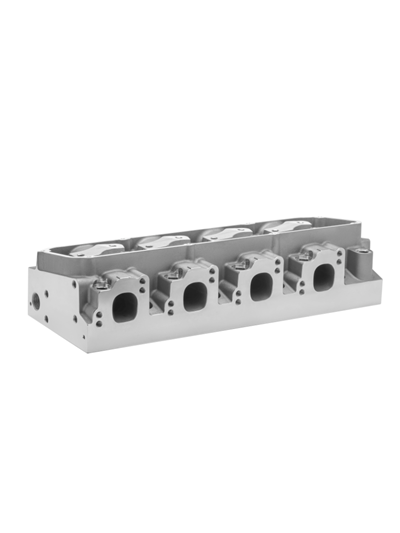

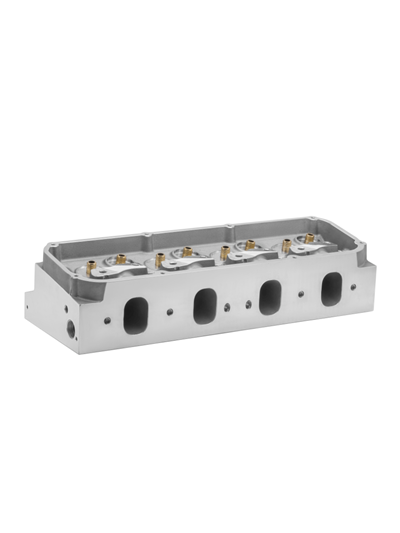

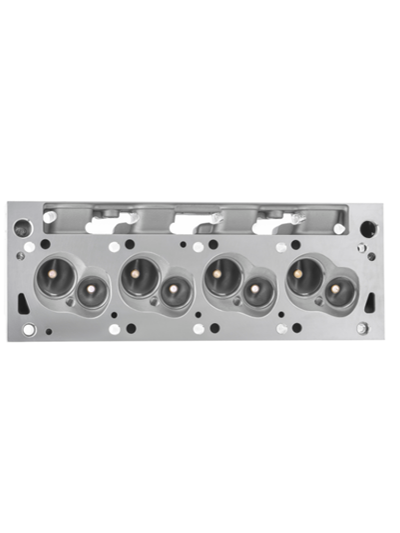

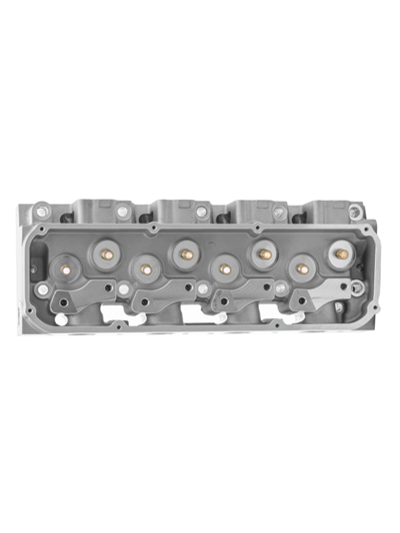

Cleveland 3V As Casting Bare Cylinder Head
Material: 356 Alloy, T6
Chamber Volume: 72cc
Complete Assembly options available in all chamber sizes
Intake Runner Volume: 231CC
Intake Port location raised .125” 3V design
Minimum Cross Section: 2.53 square inches MCSA
Exhaust Runner Volume: 125cc - high velocity
Exhaust Port Location Raised .080” (near stock location)
Valve sizes Intake 2.10” (45 degree seat, custom 5 angles)
Exhaust 1.650” (45 degree seat )
Valve Guide Angles: Canted Valve angles
Intake 10 x 4 degrees
Exhaust: 9.5 x 3.0 degrees
Valve Guides: Manganese Bronze .502” x 11/32” stems
Valve Seat Inserts: Intake: 2.250” x 1.880 x 3/8 (Durabond 7000)
Exhaust: 1.680” x 1.430” x 3/8
Spark Plugs: relocated for efficient fast burn
¾ reach, 5/8 hex, washer seat (NGKBCP7ES)
Spring Pads: 1.570” od/.560” id
Valve Spring Height: 1.960” (with stock length valve)
Pushrods 5/16” or 3/8” (check required length)
Rocker Arm Studs 7/16” unc
Rocker Arm Type 7/16” stud mounted roller rockers (1.73 ratio) or Yella Terra Planuim #6321 OR T&D shaft rocker sysytems
We also supply the following models
| Model Number | Intake Port Volume | Exhaust Port Volume | Combustion Chamber Size | Valve Angle |
| SBC Chevrolet 220cc CNC Bare Cylinder Head | 220cc | 80cc | 65cc or 72cc | 23° |
| SBC Chevrolet 210cc CNC Bare Cylinder Head | 210cc | 80cc | 65cc or 72cc | 23° |
| SBC Chevrolet 220cc As Casting Bare Cylinder Head | 210cc | 80cc | 65cc or 72cc | 23° |
| SBC Chevrolet 210cc As Casting Bare Cylinder Head | 210cc
| 80cc | 65cc or 72cc | 23° |
| SBC Chevrolet 180cc As Casting Bare Cylinder Head | 180cc | 64cc | 65cc or 72cc | 23° |
| SBC Chevrolet 200cc as Casting Bare Cylinder Head |
|
|
|
|
| SBF220 as Casting Bare Cylinder Head | 220cc | 70cc | 58cc | 20° |
| SBC Chevrolet 180cc as Casting Bare Cylinder Head |
|
|
|
|
| BBM 245cc As Casting Bare Cylinder Head | 245cc |
|
|
|
| BBM 210 As Casting Bare Cylinder Head | 210cc |
|
| 15° |
| SBF220 CNC Bare Cylinder Head | 220cc | 70cc | 58cc | 20° |
| SBF220 as Casting Bare Cylinder Head | 220cc | 70cc | 58cc | 20° |
| SBF205 CNC Bare Cylinder Head | 203cc | 70cc | 58cc | 20° |
| SBF185 CNC Bare Cylinder Head | 185cc | 70cc | 58cc | 20° |
| SBF185 as Casting Bare Cylinder Head | 190cc | 70cc | 58cc | 20° |
| SBF175 as Casting Bare Cylinder Head | 175cc(177.4) | 66cc(66.4) | 60cc | 20° |
| Ford Fe As Casting Bare Cylinder Head |
|
|
| 13°
|
| Chrysler 360 assembly each |
|
| 63cc | 18° |
| SBM As Casting Bare Cylinder Head |
|
|
| 18° |
| BBC360 CNC Bare Cylinder Head | 360cc | 135cc | 121cc | 24°/4° Int, 15°/4° Exh |
| BBC335 CNC Bare Cylinder Head | 335cc | 135cc | 121cc |
|
| BBC 335 As Casting Bare Cylinder Head | 335cc | 135cc | 121cc |
|
| BBC 315 CNC Bare Cylinder Head | 315cc | 135cc | 121cc |
|
| BBC 360 As Casting Bare Cylinder Head | 360cc | 135cc | 121cc |
|
| BBC 290 as Casting Bare Cylinder Head | 290cc | 135cc | 112cc |
|
| BBC315 as Casting Bare Cylinder Head | 317cc | 135cc | 121cc |
|
| LS3 270 CNC Porting Cylinder head |
|
|
|
|
| 15 Degree LS1 235cc As Casting Bare Cylinder Head |
|
|
|
|
| 15 Degree LS3 276cc CNC Bare Cylinder Head | 276cc | 92cc |
| 15°
|
| 15 Degree LS3 276cc As Casting Bare Cylinder Head | 276cc | 92cc |
| 15°
|
| 11 Degree LS3 260cc As Casting Bare Cylinder Head |
|
|
|
|
| 11 Degree LS3 250cc As Casting Bare Cylinder Head |
|
|
|
|
| 11 Degree LS3 260cc CNC Bare Cylinder Head |
|
|
|
|
| 11 Degree LS1 250cc As Casting Bare Cylinder Head |
|
|
|
|
| SBC Chevrolet 210cc As Casting Bare Cylinder Head | 210cc | 80cc | 65cc or 72cc |
23°
|
| Cleveland 2V As Casting Bare Cylinder Head |
|
|
|
|
| Cleveland 3V As Casting Bare Cylinder Head |
|
|
|
|
| SBC23 Degree Manifold SBC dula plate intake manifold |
|
|
|
|
| LS3 Cylinder block |
|
|
|
|
