SBF 205cc CNC Bare Cylinder Head-Ximeng(chongqing)auto parts co.,ltd.

SBF 205cc CNC Bare Cylinder Head Id：SBF 205cc Place of origin：CHINA

SBF205 CNC Bare Cylinder Head

Online inquiry

Previous Next

Detailed content Specification parameters Product packaging

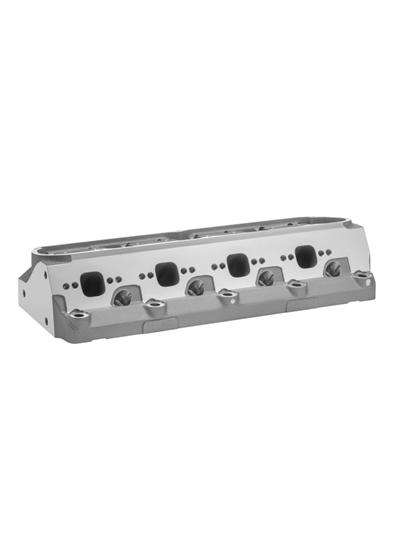

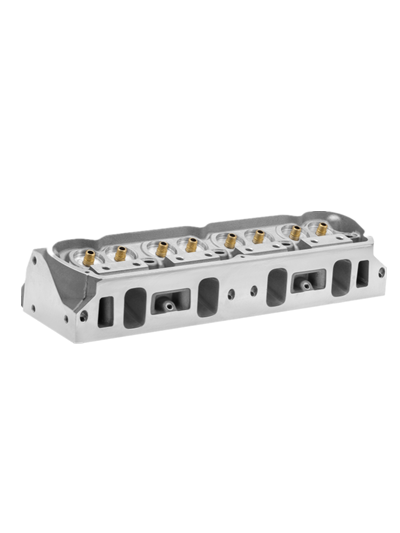

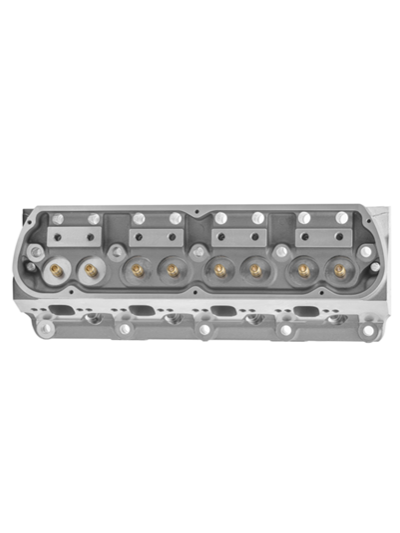

SBF205 CNC Bare Cylinder Head


Material	A356.2 Aluminum
Intake Port Volume	203cc
Intake seat size	2.08
Exhaust seat size	1.6

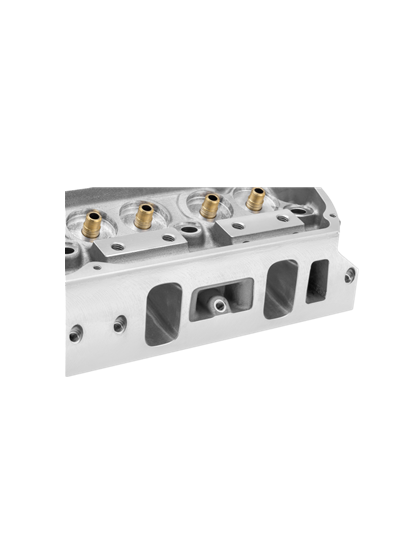

Intake Port Dimension	2.115" H x 1.300" W x 3/8 Radius
Intake Port Location	Stock
Exhaust Port Volume	70cc
Exhaust Port Dimension	1.400" H x 1.400" W
Exhaust Port Location	Raised .125"

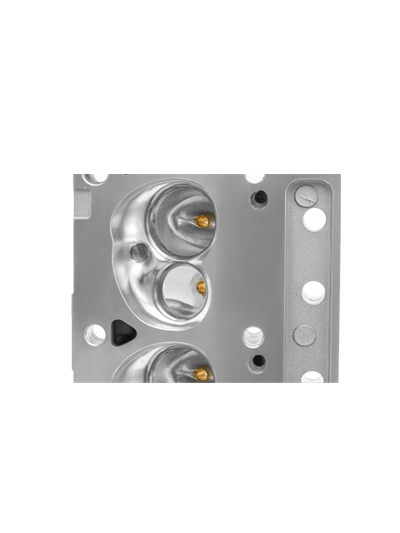

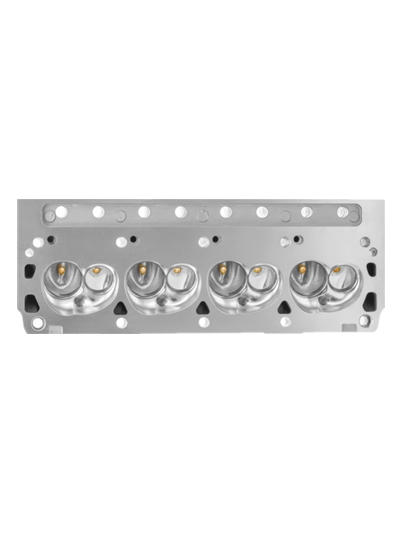

Combustion Chamber Size	58cc
Valve Cover Bolt Pattern	Perimeter Bolt
Valve Angle	20°
Valve Spring Pocket Diameter	1.580" O.D
Max Valve Spring Pocket Machining	1.625" O.D
Deck Thickness	.750"
Minimum Bore Diameter	4.000"
Flat Mill	.006" per cc 54cc Max (from 58cc); 68cc Max (from 72cc);
Angle Mill	.009" per cc 48cc Max (from 58cc); 62cc Max (from 72cc);
Minimum Cross Sectional Area	2.165 sq. in.
Spark Plug Dimensions	14mm x .750" w/Gasket Seat
Head Bolt Diameter	1/2"


Recommended Components:
Rocker Type Mount
8mm Bead Lock Intake Valve, 2.080" x 5.000" Overall Valve Length
8mm Bead Lock Exhaust Valve, 1.600" x 5.030" Overall Valve Length
PAC Racing Spring 1.550" OD Solid Roller Dual Valve Spring, 220 lbs on seat, .710" maximum lift, Max RPM 7200-7400 (upgrades available)
10° Manley Steel Retainers 1.500" O.D x 1.120" I.D x .705" I.D
10° Bead Lock Valve Keepers with lashcap recess
ARP 7/16" Rocker Studs
Adjustable 5/16" Guide Plates
Viton Valve Seals .600" O.D x .495" I.D
Hardened Valve Spring I.D Locator 1.550" O.D x .780" I.D
Powder Metallurgy Intake Valve Seats 2.131" O.D x 1.680" I.D x .375" Deep
Powder Metallurgy Exhaust Valve Seats 1.650" O.D x 1.350" I.D x .375" Deep
8 mm Bronze Valve Guides .502" O.D x 2.100" O.A.L
Recommended Components:
Intake Port Gasket, 1.200" X 2.000" w/ 3/8" radius, Fel-Pro #1262
Important: Do not port match your intake manifold to Fel-Pro gasket as it does not precisely fit MIC heads.
Exhaust Port Gasket, Fel-Pro #1487
Head Gasket, Fel-Pro #1011-1
SB Ford 1/2" Bolt Head Bolt Kit, ARP #154-3603
SB Ford 1/2" Bolt Head Stud Kit, ARP #254-4503
1/2" Bolt - 7/16" Thread Head Bolts, ARP 254-3708
Head Bolt Washer Kit, Manley
Stud Girdle
Suggested Manifold	Super Vic or Vic Jr.
Spark Plug Starting Range	Autolite 3922

We also supply the following models

Model Number	Intake Port Volume	Exhaust Port Volume	Combustion Chamber Size	Valve Angle
SBC Chevrolet 220cc CNC Bare Cylinder Head	220cc	80cc	65cc or 72cc	23°
SBC Chevrolet 210cc CNC Bare Cylinder Head	210cc	80cc	65cc or 72cc	23°
SBC Chevrolet 220cc As Casting Bare Cylinder Head	210cc	80cc	65cc or 72cc	23°
SBC Chevrolet 210cc As Casting Bare Cylinder Head	210cc	80cc	65cc or 72cc	23°
SBC Chevrolet 180cc As Casting Bare Cylinder Head	180cc	64cc	65cc or 72cc	23°
SBC Chevrolet 200cc as Casting Bare Cylinder Head
SBF220 as Casting Bare Cylinder Head	220cc	70cc	58cc	20°
SBC Chevrolet 180cc as Casting Bare Cylinder Head
BBM 245cc As Casting Bare Cylinder Head	245cc
BBM 210 As Casting Bare Cylinder Head	210cc			15°
SBF220 CNC Bare Cylinder Head	220cc	70cc	58cc	20°
SBF220 as Casting Bare Cylinder Head	220cc	70cc	58cc	20°
SBF205 CNC Bare Cylinder Head	203cc	70cc	58cc	20°
SBF185 CNC Bare Cylinder Head	185cc	70cc	58cc	20°
SBF185 as Casting Bare Cylinder Head	190cc	70cc	58cc	20°
SBF175 as Casting Bare Cylinder Head	175cc(177.4)	66cc(66.4)	60cc	20°
Ford Fe As Casting Bare Cylinder Head				13°
Chrysler 360 assembly each			63cc	18°
SBM As Casting Bare Cylinder Head				18°
BBC360 CNC Bare Cylinder Head	360cc	135cc	121cc	24°/4° Int, 15°/4° Exh
BBC335 CNC Bare Cylinder Head	335cc	135cc	121cc
BBC 335 As Casting Bare Cylinder Head	335cc	135cc	121cc
BBC 315 CNC Bare Cylinder Head	315cc	135cc	121cc
BBC 360 As Casting Bare Cylinder Head	360cc	135cc	121cc
BBC 290 as Casting Bare Cylinder Head	290cc	135cc	112cc
BBC315 as Casting Bare Cylinder Head	317cc	135cc	121cc
LS3 270 CNC Porting Cylinder head
15 Degree LS1 235cc As Casting Bare Cylinder Head
15 Degree LS3 276cc CNC Bare Cylinder Head	276cc	92cc		15°
15 Degree LS3 276cc As Casting Bare Cylinder Head	276cc	92cc		15°
11 Degree LS3 260cc As Casting Bare Cylinder Head
11 Degree LS3 250cc As Casting Bare Cylinder Head
11 Degree LS3 260cc CNC Bare Cylinder Head
11 Degree LS1 250cc As Casting Bare Cylinder Head
SBC Chevrolet 210cc As Casting Bare Cylinder Head	210cc	80cc	65cc or 72cc	23°
Cleveland 2V As Casting Bare Cylinder Head
Cleveland 3V As Casting Bare Cylinder Head
