BBC 360 As Casting Bare Cylinder Head-Ximeng(chongqing)auto parts co.,ltd.

BBC 360 As Casting Bare Cylinder Head Id：Cylinder Head BBC 360 As Casting Bare Place of origin：CHINA

BBC 360 As Casting Bare Cylinder Head

Online inquiry

Previous Next

Detailed content Specification parameters Product packaging

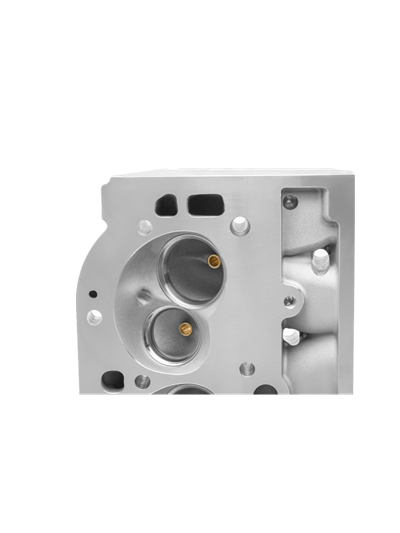

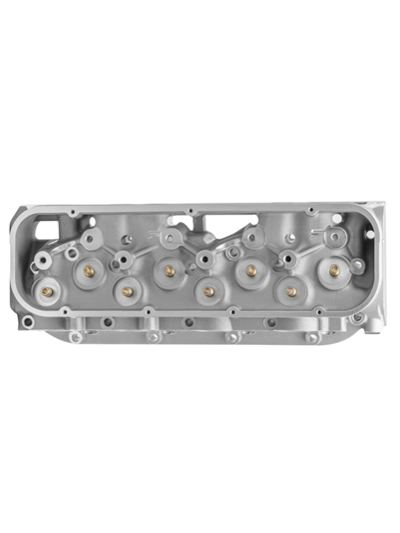

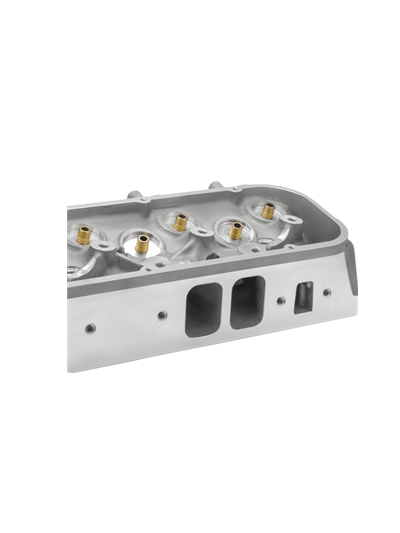

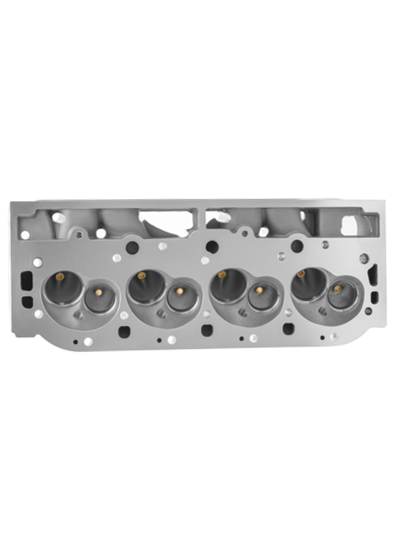

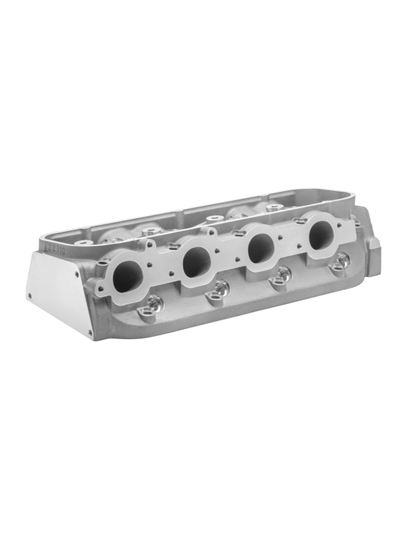

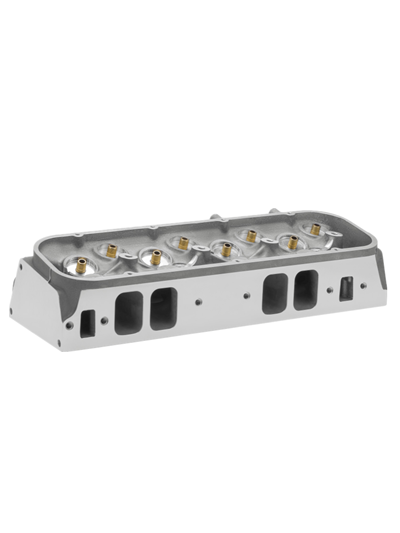

BBC 360 As Casting Bare Cylinder Head

Material	A356.2 Aluminum
Intake Port Volume	360cc
Intake seat size	2.3
Exhaust seat size	1.88
Intake Port Dimension	2.515"H x 1.780"W x 11/32 Radius
Intake Port Location	Stock
Exhaust Port Volume	135cc
Exhaust Port Dimension	1.780"H x 2.025" W
Exhaust Port Location	.375" Raised
Combustion Chamber Size	121cc
Valve Cover Bolt Pattern	Perimeter Bolt
Valve Angle	24°/4° Int, 15°/4° Exh
Valve Spring Pocket Diameter	1.725" O.D
Max Valve Spring Pocket Machining	1.750" O.D
Deck Thickness	.750"
Minimum Bore Diameter	4.250"
Flat Mill	.006" per cc/ Maximum 114cc
Angle Mill	.009" per cc/Maximum 104cc
Note:Angle mills might require a .120" Thick intake gasket.
Minimum Cross Sectional Area	3.435 sq. in.
Spark Plug Dimensions	14mm x .750" w/Gasket Seat
Intake Valve Seat Machine Style:	5-angle

11/32" Intake Valve, 2.300" x5.500" O.A.L
11/32" Tulip Exhaust Valve, 1.880" x 5.450" O.A.L
Racing Spring #1224 1.625 O.D. Solid Roller, 275lbs on seat, .850 Maximum Lift, Max RPM 7400-7600
10° Titanium Retainers 1.490" O.D x 1.180" I.D x .765" I.D
10° 11/32" Valve Locks with lashcap recess
ARP 7/16" Rocker Exhaust Studs
ARP 7/16" Rocker Intake Studs
3/8" Guide Plates
11/32" Viton Valve Seals
Hardened Spring Cup 1.740" O.D / 1.650" I.D
Intake Valve Seats 2.450" O.D x 2.000" I.D x .375" Deep
Exhaust Valve Seats 2.000" O.D x 1.580" I.D x .375" Deep
11/32" Intake Bronze Valve Guides .502" O.D x 2.10" O.A.L
11/32" Exhaust Bronze Valve Guides .502" O.D x 2.25" O.A.L

Recommended Components:
Intake Port Gasket	(.120" Thick)
Intake Port Gasket	(.060" Thick)
Important: Do not port match your intake manifold to Fel-Pro gasket as it does not precisely fit the heads.
Exhaust Port Gasket
Head Gasket, Fel-Pro #1047 (Mark V and VI)
Head Gasket,, Fel-Pro #1017-1 (Mark IV)
Head Bolts, ARP 135-3703 (Mark IV)
Head Bolts, ARP 135-3707 (Mark V)
Head Studs, ARP 235-4713
Head Bolt Washers, Manley
Stud Girdle
7/16 Stud Mount Rocker Arms - 1.7 Ratio (For Optimized Geometry)
1.7 Shaft Mount Rocker Arms T&D
Suggested Manifold	Victor Jr
Suggested Manifold	Super Victor
Spark Plug Starting Range	Pump Gas 3924 / Race Gas 3922

We also supply the following models

Model Number	Intake Port Volume	Exhaust Port Volume	Combustion Chamber Size	Valve Angle
SBC Chevrolet 220cc CNC Bare Cylinder Head	220cc	80cc	65cc or 72cc	23°
SBC Chevrolet 210cc CNC Bare Cylinder Head	210cc	80cc	65cc or 72cc	23°
SBC Chevrolet 220cc As Casting Bare Cylinder Head	210cc	80cc	65cc or 72cc	23°
SBC Chevrolet 210cc As Casting Bare Cylinder Head	210cc	80cc	65cc or 72cc	23°
SBC Chevrolet 180cc As Casting Bare Cylinder Head	180cc	64cc	65cc or 72cc	23°
SBC Chevrolet 200cc as Casting Bare Cylinder Head
SBF220 as Casting Bare Cylinder Head	220cc	70cc	58cc	20°
SBC Chevrolet 180cc as Casting Bare Cylinder Head
BBM 245cc As Casting Bare Cylinder Head	245cc
BBM 210 As Casting Bare Cylinder Head	210cc			15°
SBF220 CNC Bare Cylinder Head	220cc	70cc	58cc	20°
SBF220 as Casting Bare Cylinder Head	220cc	70cc	58cc	20°
SBF205 CNC Bare Cylinder Head	203cc	70cc	58cc	20°
SBF185 CNC Bare Cylinder Head	185cc	70cc	58cc	20°
SBF185 as Casting Bare Cylinder Head	190cc	70cc	58cc	20°
SBF175 as Casting Bare Cylinder Head	175cc(177.4)	66cc(66.4)	60cc	20°
Ford Fe As Casting Bare Cylinder Head				13°
Chrysler 360 assembly each			63cc	18°
SBM As Casting Bare Cylinder Head				18°
BBC360 CNC Bare Cylinder Head	360cc	135cc	121cc	24°/4° Int, 15°/4° Exh
BBC335 CNC Bare Cylinder Head	335cc	135cc	121cc
BBC 335 As Casting Bare Cylinder Head	335cc	135cc	121cc
BBC 315 CNC Bare Cylinder Head	315cc	135cc	121cc
BBC 360 As Casting Bare Cylinder Head	360cc	135cc	121cc
BBC 290 as Casting Bare Cylinder Head	290cc	135cc	112cc
BBC315 as Casting Bare Cylinder Head	317cc	135cc	121cc
LS3 270 CNC Porting Cylinder head
15 Degree LS1 235cc As Casting Bare Cylinder Head
15 Degree LS3 276cc CNC Bare Cylinder Head	276cc	92cc		15°
15 Degree LS3 276cc As Casting Bare Cylinder Head	276cc	92cc		15°
11 Degree LS3 260cc As Casting Bare Cylinder Head
11 Degree LS3 250cc As Casting Bare Cylinder Head
11 Degree LS3 260cc CNC Bare Cylinder Head
11 Degree LS1 250cc As Casting Bare Cylinder Head
SBC Chevrolet 210cc As Casting Bare Cylinder Head	210cc	80cc	65cc or 72cc	23°
Cleveland 2V As Casting Bare Cylinder Head
Cleveland 3V As Casting Bare Cylinder Head
SBC23 Degree Manifold SBC dula plate intake manifold
LS3 Cylinder block
SB185/SBC180/SBC195 Retainer
SBC195 Spring
SBF185 Spring
SBF205/SBC210/SBC220 Spring
BBC315/BBC290/BBC360 Spring
SBF170/SBF185/SBF205/SBC180/SBC195/SBC210/SBC220 Valve Seals
BBC315/BBC290/BBC360 Valve Seals
SBC/SBF Guide Plate
BBM 210/BBM240 Retainer
BBM 210/BBM 240 Lock
BBM210/BBM240/SBC180/SBC200/SBF170/SBM Valve Seals
BBM 210/BBM 240 Valve Intake/Exhaust
BBM 210/BBM 240 Spring
SBC180/SBC200 Spring Shim
SBC180/SBC200 Spring Retainer
SBC180/SBC200 Locker
SBC180/SBC200 Valve Intake/Exhaust
SBC180/200 Spring
625HP 489ci BBC dressed long block
11-LS3 Engine
LS3 Engine
BBC Engine
14-SBC Engine
13-SBF Engine
LS3 270 CNC Porting Cylinder Head
14-SBC Engine
13-SBF Engine
BBC Engine
11-LS3 Engine
